LILYGO T-Echo Plus LoRa Development Board User Manual

1. Introdução

The LILYGO T-Echo Plus is a versatile LoRa development board designed for long-range, low-power wireless communication. It integrates a 1.54-inch SPI E-Paper display, GPS capabilities, and various sensors, making it suitable for a wide range of applications including community networking, outdoor adventures, and emergency communications. This manual provides essential information for setting up, operating, and maintaining your T-Echo Plus device.

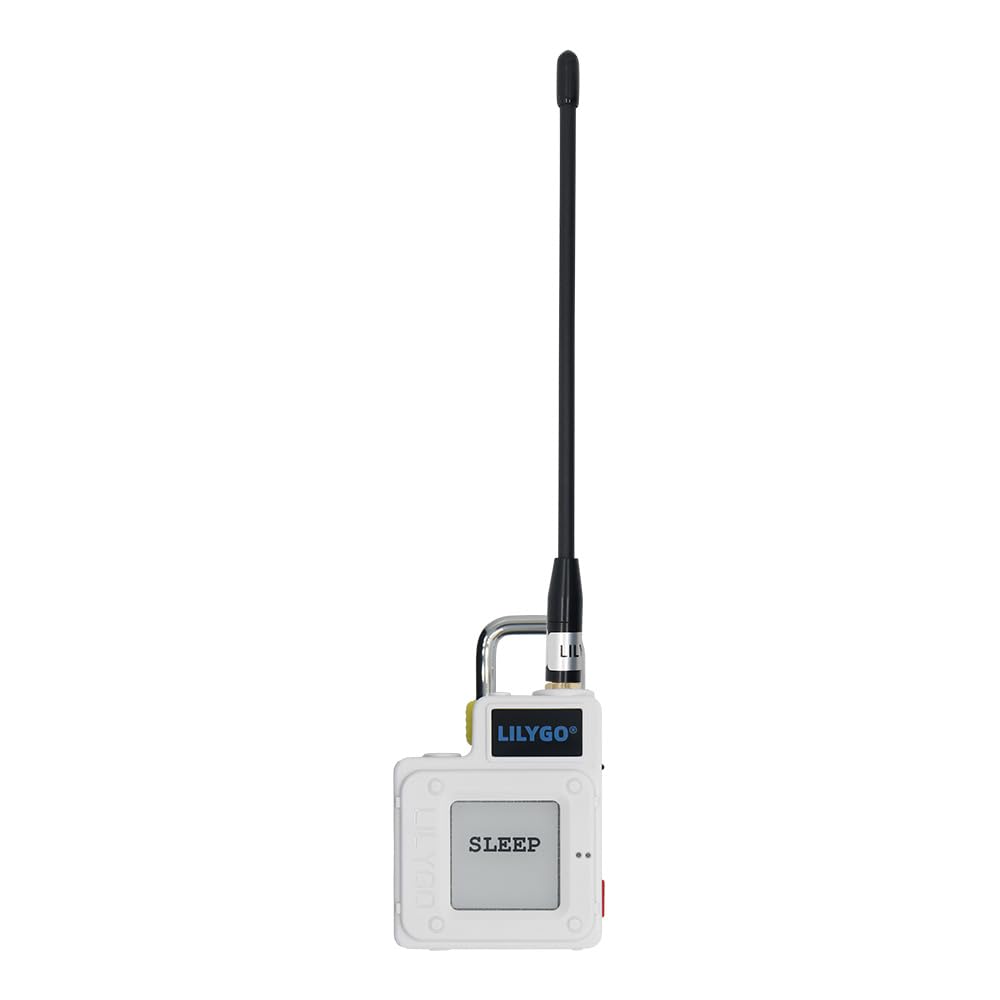

Figure 1: LILYGO T-Echo Plus LoRa Development Board.

2. Recursos do Produto

The T-Echo Plus comes equipped with several advanced features to enhance its functionality and user experience:

• BHl260AP IMU: Integrated Inertial Measurement Unit for motion sensing.
• Motor de vibração: Provides tactile feedback for notifications and alerts.
• Bateria de 2400mAh: High-capacity battery for extended operation.
• Campainha: Audible alerts for various events.
• GPS, GLONASS, BeiDou, QzSS Support: Multi-system positioning GNSS module for accurate location tracking.
• 1.54 inch SPI E-Paper Display: Grey level 2 display with 200x200 resolution and 2-second full refresh time, offering low power consumption and clear visibility.
• SX1262 LoRa Transceiver: Long-range, low-power communication with global frequency coverage (400-520 MHz, 830-945 MHz).
• nRF52840 MCU: Features Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee connectivity.

Figure 2: Technical specifications and new features of LILYGO T-Echo Plus.

Figure 3: LILYGO T-Echo Plus Battery Pack Pinmap and component overview.

3. Configuração

3.1 Montagem Inicial

1. Conecte a antena: Carefully screw the provided antenna into the SMA connector on the device. Ensure it is finger-tight to avoid damage.
2. Ligar: The device typically powers on by pressing a designated button or switch. Refer to the device's physical layout for the exact power control.

3.2 Software e Conectividade

• Aplicativo Meshtastic: Download and install the Meshtastic application on your smartphone. This app facilitates communication and device configuration via Bluetooth.
• Firmware: The device comes pre-flashed with firmware. For updates or custom firmware, connect the device to a computer via its USB-C port. Refer to the official LILYGO GitHub repository for detailed flashing instructions and available firmware versions.

Video 1: This video demonstrates the LILYGO T-Echo-Lite LoRa board, showing its compact size, e-ink screen, and the core components. It highlights the transparent case and the L76K GPS module (optional).

4. Instruções de operação

4.1 Operação básica

• Enviando mensagens: Connect your T-Echo Plus to the Meshtastic app on your phone via Bluetooth. Use the app to compose and send text messages. The device will relay these messages over the LoRa mesh network.
• Recebendo mensagens: Incoming messages will be displayed on the 1.54-inch E-Paper screen and can also be viewed within the Meshtastic app.
• Navegação na tela: Use the physical buttons on the device to navigate through different screens or menus on the E-Paper display.
• Ajuste de luz de fundo: If applicable, adjust the screen backlight using the designated controls for better visibility in various lighting conditions.
• Função SOS: In an emergency, a specific button press sequence (e.g., triple click) may trigger an SOS alarm signal, utilizing the buzzer and vibration motor.

4.2 Redes Mesh

The T-Echo Plus operates on a mesh network, meaning each device can relay messages from other devices, extending the overall communication range. The more devices in an area, the wider and more robust the network becomes. Messages can be sent encrypted for privacy.

5. Manutenção

• Carregamento: Charge the device using a standard USB-C cable. The 2400mAh battery provides extended usage time.
• Atualizações de firmware: Regularly check the LILYGO GitHub for the latest firmware updates to ensure optimal performance and access to new features. Follow the provided instructions for safe updating.
• Limpeza: Use a soft, dry cloth to clean the device and screen. Avoid using harsh chemicals or abrasive materials.
• Armazenar: Store the device in a cool, dry place when not in use. If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.

6. Solução De Problemas

• Sem conexão: Ensure the device is powered on and within Bluetooth range of your smartphone. Check the Meshtastic app for connection status.
• Faixa ruim: LoRa range is affected by line of sight and obstacles. Try moving to a higher elevation or an area with fewer obstructions. Ensure the antenna is securely attached.
• Dispositivo não responde: Try restarting the device. If the issue persists, consult the LILYGO Wiki or GitHub for specific troubleshooting steps.
• Mais assistência: For more detailed troubleshooting or technical support, refer to the official LILYGO Wiki (wiki.lilygo.cc) and GitHub repository (github.com/Xinyuan-LilyGO/T-Echo).

7. Especificações

8. O que está na caixa

Your LILYGO T-Echo Plus package includes:

• LILYGO T-Echo Plus LoRa Development Board
• Antena
• Estojo protetor
• Manual do usuário

Figure 4: LILYGO T-Echo Plus device inside its protective case.

9. Garantia e Suporte

LILYGO is committed to providing excellent product service. If you have any questions or suggestions about the product, please feel free to contact us. We will answer your question as soon as possible.

For additional resources, including detailed documentation, tutorials, and community forums, please visit:

• Wiki oficial: wiki.lilygo.cc
• GitHub Repository: github.com/Xinyuan-LilyGO/T-Echo
