Introdução
Thank you for choosing the Sainlogic SA6 Professional Weather Station. This manual provides detailed instructions for the setup, operation, and maintenance of your new weather station. The SA6 is designed to provide accurate and comprehensive weather data, including temperature, humidity, wind speed and direction, rainfall, and atmospheric pressure, all displayed on a clear 6.5-inch HD color LCD.
O que está na caixa
- Console (Unidade de Exibição)
- External Sensor Array
- Adaptador de energia
- Manual do usuário (este documento)
- Mounting Hardware (screws, bolts, mounting pole support)
Configurar
1. Instalação de sensor externo
The external sensor array measures wind speed, wind direction, rainfall, temperature, and humidity. Proper placement is crucial for accurate readings.
- Escolha um local: Select an open area free from obstructions like trees or buildings that could interfere with wind or rain measurements. Ensure it is within 100 meters (330 feet) of the display console.
- Instale as baterias: The external sensor requires 3 AA batteries (not included) for operation. Open the battery compartment, insert the batteries according to polarity, and secure the cover.
- Monte o Sensor: The sensor can be mounted on a fence, roof, or pole using the provided mounting hardware. Ensure the sensor is level using the integrated bubble level for accurate rain and wind measurements. The wind vane should point North for correct wind direction readings.
Figure 1: Outdoor Sensor Mounting Options
Figure 2: Outdoor Sensor Components
2. Configuração do console de exibição
- Instalar baterias de reserva: The display console requires 3 AAA batteries (not included) to retain settings and data during power outages. Open the battery compartment on the back, insert the batteries, and close the cover.
- Conecte o adaptador de energia: Plug the provided power adapter into the DC port on the back of the console and then into a standard wall outlet. The display will illuminate.
- Sincronização inicial: Once powered on, the console will automatically begin searching for the outdoor sensor. This process may take a few minutes. Ensure both units are within range.

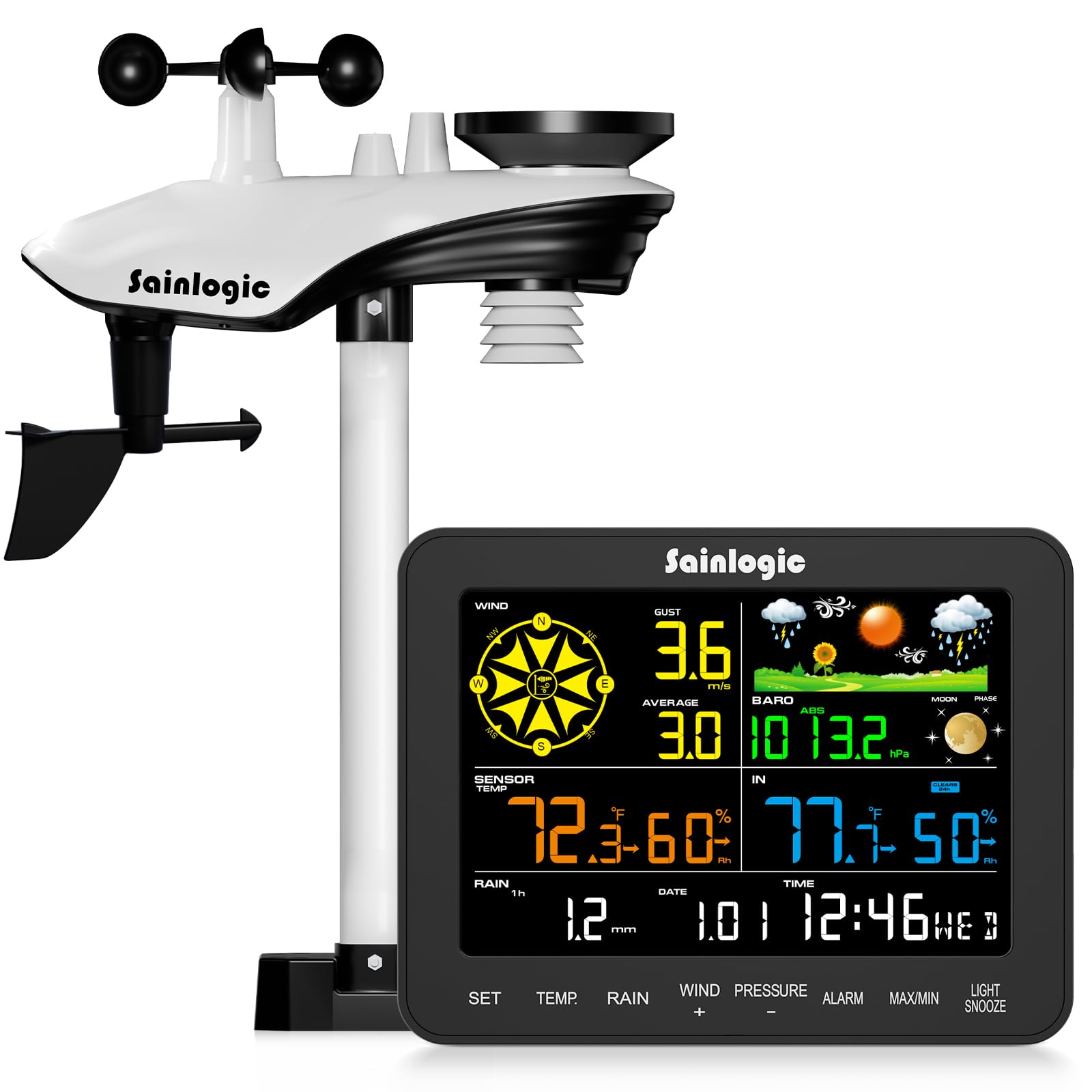

Figura 3: Console de exibição
Instruções de operação
1. Exibir sobreview
The 6.5-inch HD color LCD provides a clear, at-a-glance view of all current weather conditions. The display is divided into several sections, each showing specific data points.
Figure 4: Display Layout and Data Points
- Vento: Displays current wind speed, gust, and average wind speed, along with wind direction.
- Dados ao ar livre: Shows external temperature, humidity, dew point, and felt temperature.
- Dados internos: Displays internal temperature and humidity.
- Precipitação: Trilhas hourly, daily, weekly, monthly, and total rainfall.
- Pressão: Indicates current atmospheric pressure.
- Previsão: Provides a 12-hour weather forecast using intuitive icons.
- Hora e data: Hora, data e fase da lua atuais.
2. Funções dos botões
The console features several buttons for navigation and settings adjustment:
- CONJUNTO: Enters setup mode or confirms selections.
- TEMP: Toggles temperature units (°C/°F) or cycles through temperature data.
- CHUVA: Displays different rainfall periods (hourly, daily, weekly, monthly, total).
- WIND (+): Adjusts wind settings or increases values during setup.
- PRESSURE (-): Adjusts pressure settings or decreases values during setup.
- ALARME: Sets or activates alarms for various weather conditions.
- MAX / MIN: Views maximum and minimum recorded values.
- LUZ/SONECA: Adjusts backlight brightness or activates snooze for alarms.
3. Customizable Alerts
The weather station supports customizable alerts for specific weather conditions, such as high/low temperature, strong winds, or heavy rainfall. When an alert condition is met, the console will provide visual (flashing) and audible notifications.
Figure 5: Intelligent Weather Alerts
Manutenção
1. Cleaning the Sensor Array
Periodically inspect and clean the outdoor sensor array to ensure accurate readings. Dust, debris, or insects can affect performance.
- Medidor de chuva: Clear any leaves or debris from the rain collector funnel.
- Anemometer Cups & Wind Vane: Ensure they spin freely. Gently remove any obstructions.
- Thermo-Hygrometer Radiation Shield: Keep the vents clear for proper air circulation.
2. Substituição da bateria
Replace batteries in both the outdoor sensor and display console as needed. Low battery indicators will appear on the display. Always use fresh, high-quality batteries of the specified type (3 AA for sensor, 3 AAA for console backup).
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Nenhum dado externo em exibição | Sensor out of range, low sensor batteries, interference. | Move sensor closer to console, replace sensor batteries, check for strong electronic interference. |
| Temperatura/umidade imprecisa | Sensor exposed to direct sunlight/heat source, blocked vents. | Relocate sensor to a shaded area, clear radiation shield vents. |
| Leituras imprecisas do vento | Obstructions near sensor, wind vane not pointing North. | Ensure clear path for wind, verify wind vane orientation. |
| Precipitação imprecisa | Rain collector blocked, sensor not level. | Clear debris from collector, ensure sensor is perfectly level. |
| Display console not powering on | Power adapter disconnected, faulty adapter, no backup batteries. | Check power connection, try a different outlet, ensure backup batteries are installed. |
Especificações
Figura 6: Dimensões e especificações do produto
- Número do modelo: SA6
- Mostrar: 6.5-inch HD Color LCD
- Outdoor Sensor Batteries: 3 x pilhas AA (não incluídas)
- Console Backup Batteries: 3 x AAA (não incluído)
- Fonte de energia: Adaptador CA / Bateria
- Material: Acrilonitrila Butadieno Estireno (ABS)
- Faixa de transmissão sem fio: Até 100m (330 pés)
- Faixa de temperatura externa: -40°F a 140°F (-40°C a 60°C)
- Faixa de temperatura interna: 32°F a 140°F (0°C a 60°C)
- Faixa de umidade: 10% a 99% UR
- Faixa de pressão barométrica: 300 a 1100 hPa
- Precisão da precipitação: ±1 mm (for <15 mm), ±7% (for 15-9999 mm)
- Características especiais: Customizable alerts, adjustable brightness, portable, wireless, alarm clock.
- Dimensões do produto: Console: 2.5 x 17 x 13.2 cm; Sensor: 12.9 x 18.5 x 4.25 cm (approximate)
- Peso do item: 2.74 quilogramas (pacote total)
Garantia e Suporte
The Sainlogic SA6 Professional Weather Station comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact Sainlogic customer support. If you encounter any issues or require assistance, please reach out to our support team via the contact information provided on our official website ou sua plataforma de compra.
